Sensors API

FLX will provide an API for using and utilising Android sensors. The following sensors are currently supported:

  • Acceleration Sensor
  • Ambient Temperature Sensor (air temperature sensor)
  • Gravity Sensor
  • Light Sensor
  • Linear Acceleration Sensor
  • Pressure sensor
  • Significant Motion Sensor

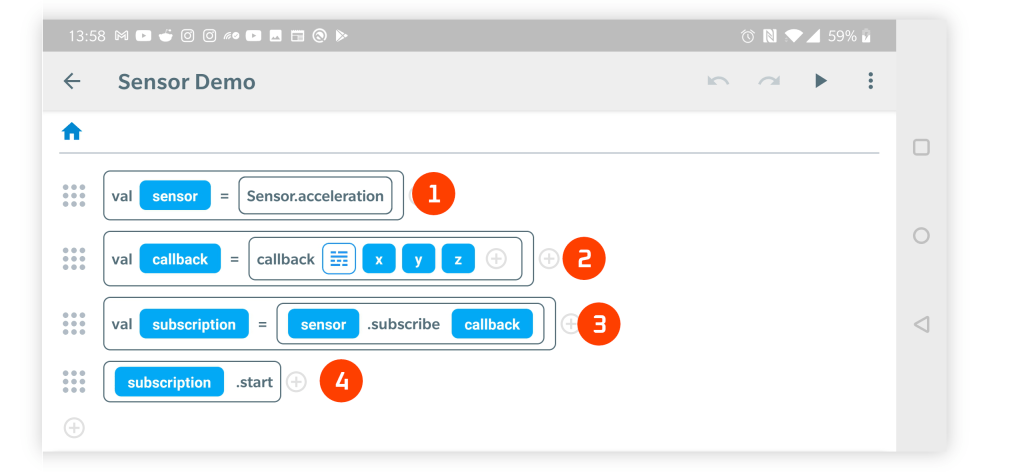

Integration to sensors is based on Observer pattern. Sensors are used as Observables and Callbacks are used as observers. Observers subscribe to sensors as Observables. Subscribing produces a Subscription which can be used to start/pause/resume/stop receiving of sensor events via the callback. The following is an example of how to subscribe to the acceleration sensor that produces three values: acceleration along x, y, and z axis.

  1. A reference to AccelerationObservable, which wraps the acceleration Sensor, is obtained and stored as value sensor.
  2. A Callback is created with callback Code (see below) and three callback variables: x, y, z.
  3. Callback subscribes as an observer to sensor observable. A reference to a Subscription instance is returned and it is stored to value subscription so that the instance functions of Subscription instance can be invoked later on.
  4. Receiving of acceleration events via callback is started by invoking instance function (Subscription .start). Other control functions are:
    • (Subscription .pause): pause receiving
    • (Subscription .resume): resume receiving
    • (Subscription .stop): stop receiving (and unsubscribe)

  1. The code of the accelerator sensor callback-
  2. Callback parameter x: Acceleration along x-axis as a Float value.
  3. Callback parameter y: Acceleration along y-axis as a Float value.
  4. Callback parameter z: Acceleration along z-axis as a Float value.
  5. Received values are printed

Sensor API Functions

FLX’s current Sensor API consists of the following sensor specific functions and of some more generic Observer pattern related functions:

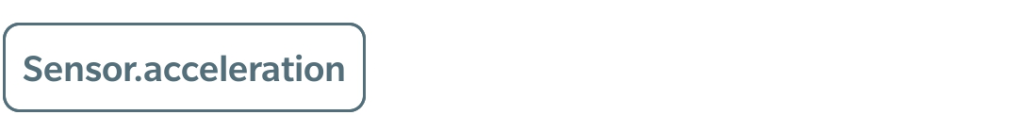

Creates an AccelerationObservable that wraps the SensorListener for acceleration sensor.

Returns: An AccelerationObservable which can be subscribed with a Callback.

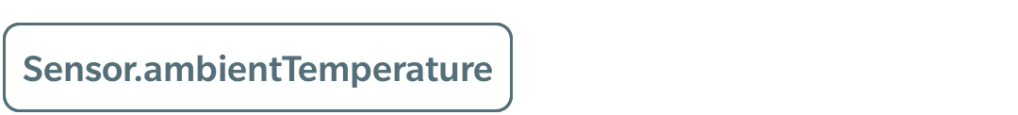

Creates an AmbientTemperatureObservable that wraps the SensorListener for ambient temperature (air temperature) sensor.

Returns: An AmbientTemperatureObservable which can be subscribed with a Callback.

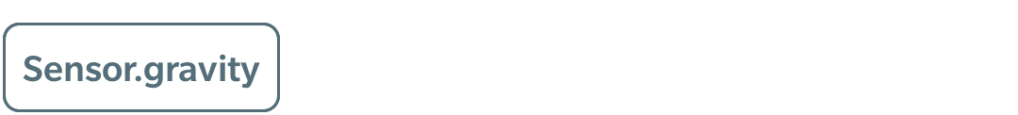

Creates an GravityObservable that wraps the SensorListener for gravity sensor.

Returns: An GravityObservable which can be subscribed with a Callback.

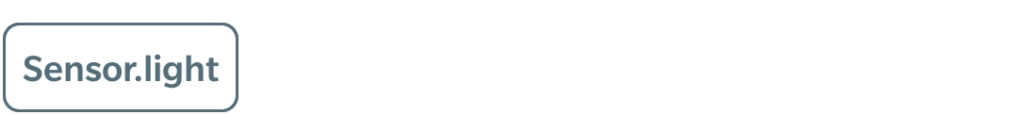

Creates an LightObservable that wraps the SensorListener for light sensor.

Returns: An LightObservable which can be subscribed with a Callback.

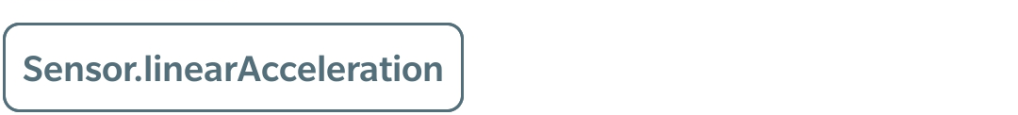

Creates an LinearAccelerationObservable that wraps the SensorListener for linear acceleration sensor.

Returns: An LinearAccelerationObservable which can be subscribed with a Callback.

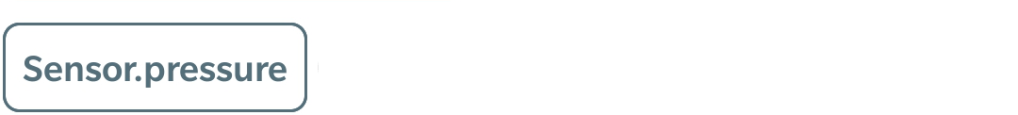

Creates an PressureObservable that wraps the SensorListener for linear acceleration sensor.

Returns: An PressureObservable which can be subscribed with a Callback.

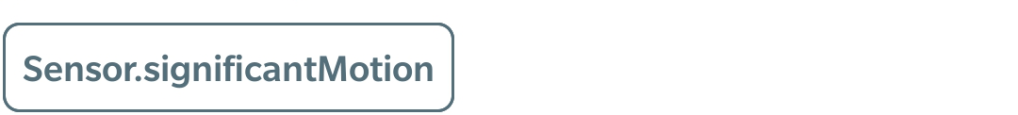

Creates an SignificantMotionObservable that wraps the SensorListener for linear acceleration sensor.

Returns: An SignificantMotionObservable which can be subscribed with a Callback.

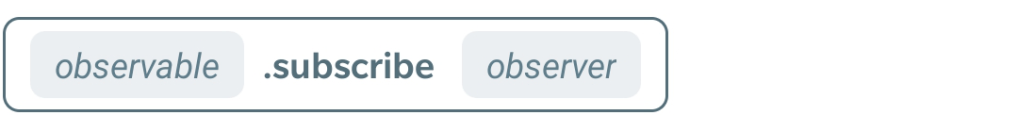

Subscribes the given observer to receive a stream of values from the given observable. This function is not exactly part of Sensors API, but more generic, Observer pattern related function.

  • observable – an Observable, e.g., AccelerationObservable
  • observer – a Callback which needs to have a callback parameter declared for each individual value produced by the observable in a single event. For instance, AccelerationObservable produces three values for each sensor event: acceleration along x-, y-, and z-axis.

Returns: A Subscription which can be started, paused, resumed, stopped, and unsubsribed.

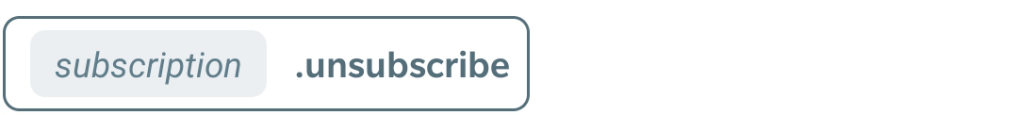

Unsubscribes the given subscription so that the Callback based observer will no longer receive a stream of values from the subscriber Observer. This function is not exactly part of Sensors API, but more generic, Observer pattern related function.

  • subscription – a Subscription

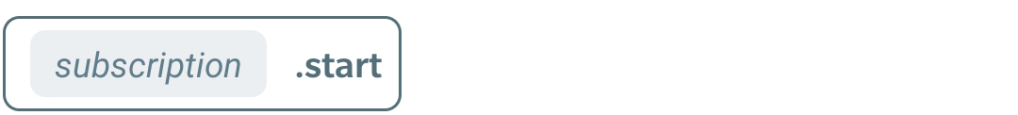

Starts the receiving of events from the observable referenced by the given subscription. This function is not exactly part of Sensors API, but more generic, Observer pattern related function.

  • subscription – a Subscription

Pauses the receiving of events from the observable referenced by the given subscription. This function is not exactly part of Sensors API, but more generic, Observer pattern related function.

  • subscription – a Subscription

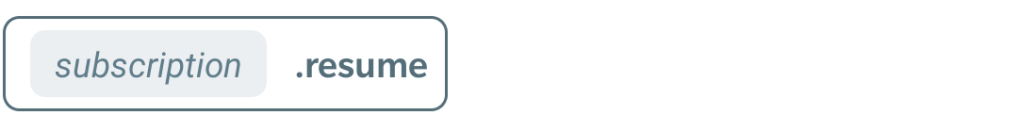

Resumes the receiving of events from the observable referenced by the given subscription. This function is not exactly part of Sensors API, but more generic, Observer pattern related function.

  • subscription – a Subscription

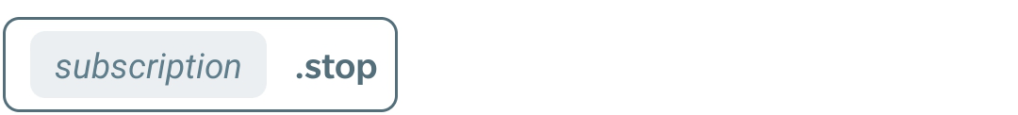

Stops the receiving of events from the observable referenced by the given subscription. Invocation of this function also implicitly invokes the (Subscription .unsubscribe) function. This function is not exactly part of Sensors API, but more generic, Observer pattern related function.

  • subscription – a Subscription
